HC-05 RF Wireless Module Bluetooth wireless serial module HC-05

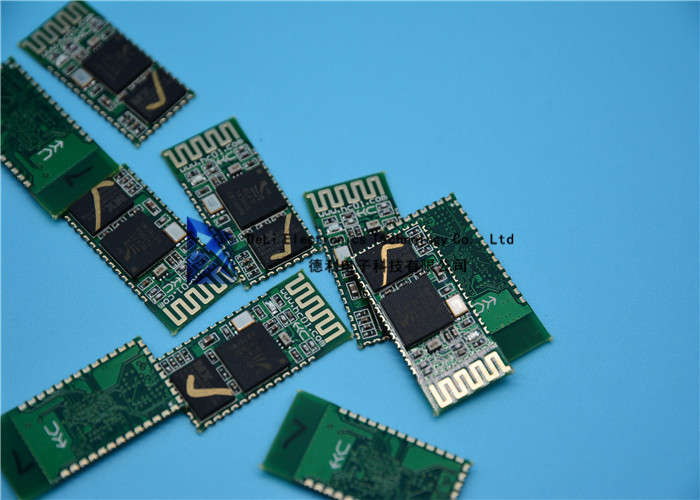

Bluetooth wireless serial module HC-05
Key Features:
1. CSR Bluetooth Chip Solution
2. Bluetooth Spec v2.0+EDR Compliant
3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of
specification for both 2Mbps and 3Mbps modulation modes
4. Full Speed Bluetooth Operation with Full Piconet Support and
Scatternet Support
5. Increadible samll size with 3.3V input, and RoHS Compliant
6. UART interface and with baudrate setup function
7. Support for 8Mbit External Flash Onboard
8. Support for 802.11Co-Existence
Product Description
The Bluetooth UART RS232 serial Converter Module can easily
transfer the UART data through the wireless Bluetooth, without
complex PCB layout or deep knowledge in the Bluetooth software
stack, you can combine this bluetooth module with your system:
* MCU, ARM or DSP systems.
* SOC systems.
* Personal Digital Assistants (PDAs)
* Computer Accessories
* Other systems your want to use under bluetooth functions.
[Hardware]
CSR solution, Bluetooth V2.0 protocol
support AT commander
support Master and Slave mode, modify by AT commander
support 1200-115200 baudrate
3.3V single supply
Size: core module: 28mm*15mm*2.35mm, whole
module:35.33mm*19.6mm*3.7mm
current: 30mA MAX
can be used with all MCU by UART port
2 indicator lights
[Software]
user manual
AT commander manual
[External Board]
We also provide an external board for the bluetooth to UART module
for purchase.
This small size Bluetooth TTL transceiver module allows your target
device to both send or receive the TTL data via Bluetooth
technology without connecting a serial cable to your computer. It's
easy to use and completely encapsulated.
TTL data transparent transfer between a host Bluetooth device.
Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Coverage up to 30ft.
Built in antenna.
Power input: +3.3VDC.
Mini Size:27.2mm x 12.8mm x 2.5mm
Quick Details
D/C: 18+
Package: Module
Model Number: HC-05
Type: HC-05 BT Module
Place of Origin: Guangdong, China (Mainland)
Name: HC-05 2.0+4.0BLE Wireless Serial port Transmission BT Module
Size: 27*13MM
Supply Voltage: 3.0~3.6V
Communication level: 3.3v
Transmit power: 6dBm(Max)
Reference distance: 10m
Operating Temperature: -25~75℃
Lead time: In stock
