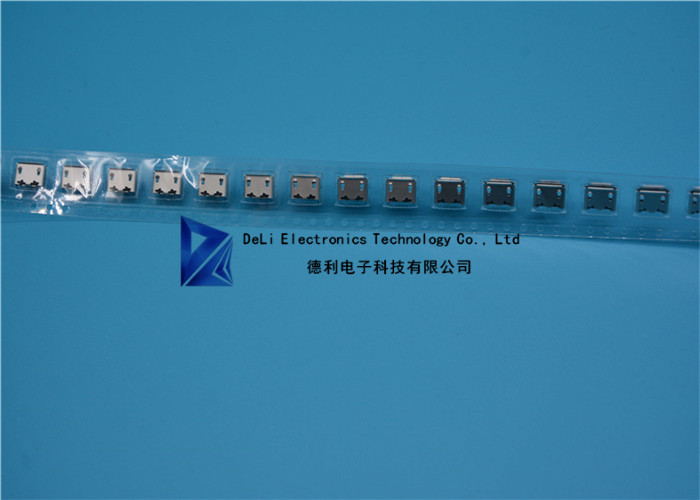

10118194-0001LF PCB Connector USB - micro B USB 2.0 Receptacle
Connector 5 Position Surface Mount, Right Angle; Through CONN USB MICRO B RECPT SMT R/A
MICRO USB 2.0 CONNECTORS
OVERVIEW
Extremely small high reliability connectors comply with physical,
electrical and environmental requirements of Micro USB standard
(USB 2.0).
Space receptacles are available in a wide variety of mounting and
termination configurations, permitting their use in various
applications.
FEATURES BENEFITS
• More compact than Mini USB
• Highly suitable for interconnect solutions required by mobile
phone makers
• Offers standard, mid-mount, and reverse options
• Flexible application in various situations
• Specified for up to 10,000 insertion cycles
• Ensures maximum receptacle-to-PCB retention
• Replaces the need for adapters and power
• Allows convenient recharging and communication
• RoHS compliance and Lead-free
• Meets environmental, health and safety requirements
• Available in UL94V-0 flammability
• High flammability rating
• Supports On-The-Go (OTG)
• Better accessibility and convenience for users
• Full metal shielding
• For EMI/ESD protection
| Product Attributes | Select All |
| Categories | Connectors, Interconnects |
| | USB, DVI, HDMI Connectors |
| Manufacturer | Amphenol FCI |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Connector Type | USB - micro B |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Solder Retention |
| Ingress Protection | - |
| Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 |
| Current Rating | 1.8A per Contact |
| Voltage - Rated | 100VAC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Description: |
| Muti-Port RJ45 side entry Network Jack with shield |
| Number of ports: 1*1 |
| Number of position: 8 |
| Number of contacts: 2,4,6 or 8 |
|
| Electrical: |
| Rated current: 1.5A |
| Rated voltage: 125VAC |
| Insulation resistance: 500MΩmin |
| Contact resistance: 30MΩmax |
| Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min |
|
| Materials: |
| Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and
PA46 (UL94V-0) |
| 2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel |
| 3. Shield: 0.20~0.25mm thickness brass with tin plated |
| 4. Gold Plating: Fu",+3u",6u",15u",30u",50u" |
