Manufacturers selling tripod ears without vertical (1P2T) black
DL-12F17 toggle switch environmental protection material
smd mini 3 position slide electrical switch Push Button On Off
Switch
The specification of slide switch
MOQ:100pcs
Multi function switch
Various knob types
Used in electronics machines
CE,RoHS Certification
1) UL,CUL,VDE,TUV,CE,EK,CQC Approvals
2) All of our products are ROHS certificate
3) Safe,reliable miniature switch
4) Nice appearance,tight configuration,characteristic:small contact
gap,quick action,high sensitivity and small operating travel
5) Long life ,high reliability
6) A variety of contact terminals
7) A variety of levers
8) Adopt thermosetting plastic or thermoplastic
9) Widely used in home appliance,electronic equipment,automatic
machine,communication equipment,car electron,apparatus and
instrument etc.
Advantage
1) Safe , reliable basic switch
2) Nice appearance , tight configuration. Characteristic: Small
cotact clearance, quick action, high sensitivity and small
operating travel.
3) Long life, high reliability,
4) A variety of contact terminals
5) Widely used in home appliance, electronic equipment, automatic
machine,communication equipment, car electron, apparatus and
instrument, electric motion tool etc.
| MEASURED AT SMALL CURRENT(100 mA OR LESS) | |
| APPLY A VOLTAGE OF 500V DC SHALLBEAPPLIED FOR 1 MIN AFTER WHICH
MEASUREMENT BE MADE:
(1) BETWEEN TERMINALS.
(2) BETWEEN INDIVIDUAL TERMINALS AND FRAME. | |
| AC 500V rms(50-60Hz)FOR 1 MIN TRIP CURRENT: 0.5 mA
(1) BETWEEN TERMINALS.
(2) BETWEEN INDIVIDUAL TERMINALS AND FRAME. | WITHOUT DAMAGE TO
PARTSARCING OR
BREAKDOWN, ETC. |
| MECHANICALCHARACTERISTICS | | |
| | |
| A STATIC LOAD OF 300gf SHALL BE APPLIED
TO THE TERMINAL FOR 15 SEC.IN ANY DIRECTION | ELECTRICAL
CHARACTERISTICS
SHALLBE SATISFIED
WITHOUTDAMAGE OR
EXCESSIVE LOOSENESS OF
TERMINALS. |
| A STATIC LOAD OF 300gf SHALL BE APPLIED
TO THE TERMINAL FOR 15 SEC.IN ANY DIRECTION | ELECTRICAL
CHARACTERISTICS
SHALLBE SATISFIED
WITHOUTDAMAGE OR
EXCESSIVE LOOSENESS OF
TERMINALS. |
DISPLACEMENT
OF ACTUATOR
(KNOB) | A STATIC LOAD OF 10 N(1Kgf)SHALL BE APPLIED
TO THE TOP OF THE ACTUATOR(KNOD) AND THEN
DISPLACEMENT SHALL BE MEASURED TO THE
DIR- ECTION OF THE ARROW. | THE LEVER SHALL HAVE
NO SERIOUS DEFORMATION
AND FUNCTION IS
NORMALLY . |
| ENDURANCE WITHOUT LOADING:
A SWITCH SHALL BE SUBJECTED TO 10,000
CYCLES AT A SPEED OF 15 TO 18 CYCLES
PER MINUTE WITHOUT LOADING. | (1) CONTACT RESISTANCE
100mΩMAX.
(2) INSULATION RESISTANCE
50MΩMIN.
(3) WITHSTAND VOLTAGE
AC 500V,1 MINUTE.
(4) OPERATING FORCE
±30% INITIAL VALUE.
(5) WITHOUT DAMAGE TO PARTS ARCING
OR BREAKDOWN ETC. |
| THE TOP OF THE TERMINALS SHALL BE
DIPPED 2mm IN THE SOLDER BATH OF
230±5 Centigrade FOR 3±0.5 SECONDS. | THE AREA OF SOLDERING.
SHOULD BE OVER 75%. |
RESISTANCE TO
SOLDERING
HEAT TEST | SOLDER BATH METHOD:
SOLDER TEMPERATURE 260±5 Centigrade
IMMERSION TIME 3±0.5 SEC
IMMERSION DEPTH UP TO
THESURFACE OF THE BOARD
THICKNESS OF PRINTED WIRINGBOARD
1.6mm DIMENSIONS OFCOMPONENT HOLES
IN THE PRINTED WIRING BOARD SHALL
BEING ACCORDANCE WITH THOSE SPECIFIED
IN THIS SPECIFICATION. | WITHOUT DEFORMATION OF
CASE OR
EXCESSIVE LOOSENESS OF
TEMINALS
ELECTRICAL CHARACTERISTICS SHALL
BE SATISFIED. |
| THE SWITCH SHALL BE STORED AT A
TEMPERATURE OF -25±3 Centigrade
FOR 48 HOURS.
THEN THE SWITCH SHALL BE MAINTAINED
AT STANDARD ATMOSPHERIC CONDITIONS
FOR 1 HOURAFTER WHICH MEASUREMENT
SHALL BE MADE. | THERE SHALL BE NO
DEFORMATION
OR CRACKS IN MOLDED PART. |
| THE SWITCH SHALL BE STORED AT A
TEMPERATUREOF70±2 Centigrade
FOR 48 HOURS.
THEN THE SWITCHSHALL BE MAINTAINED AT
STANDARD ATMOSPHERICCONDITIONS FOR
1 HOUR AFTER WHICH MEASUREMENT SHALL
BE MADE. | THERE SHALL BE NO
DEFORMATION
OR CRACKS IN MOLDED PART. |
| THE SWITCH SHALL BE STORED AT A
TEMPERATUREOF40±2 Centigrade
AND A HUMIDITY
OF 90% TO 95% FOR 96 HOURS.THEN THE
SWITCH SHALL BE MAINTAINED AT STANDARD
ATMOSPHERIC CONDITION FOR 1 HOUR AFTER
WHICH MEASUREMENT SHALL BE MADE. | THERE SHALL BE NO
DEFORMATION
OR CRACKS IN MOLDED PART. |
STANDARD
ATMOSPHEIC
CONDITIONS | UNLESS OTHERWISE SPECIFIED.
THE STANDARD RANGE OF ATMOSPHERIC
CONDITIONS FOR MAKING MEASUREMENTS
AND TESTS ARE AS FOLLOWS:
(1)AMBIENT TEMPERATURE :5 TO 35 -Centigrade
(2)RELATIVE HUMIDITY : 45% TO 85%
(3)AIR PRESSURE : 86Kpa TO 106Kpa | |
PRACTICAL
TEMPERATURERANGE | | |
Iron shell
material: iron;
process: by electroplating nickel
or clay pot black process,
thus preventing the oxidation
Customizable:Steel pin,
Antirust technology,Word mark
Terminal-Pin
Material: phosphor copper;
Treatment: electroplating silver.
Customizable
Stitch length,
With hole,
Pin direction
Plastic handle
Material: POM material,
such as fire retardant
high-temperature requirement,
Often choose PA nylon material
processing craft: injection molding.
Customizable
Temperature resistance
length
Knob Type (can check on Code Explanation )
Contact code
Material: phosphor copper;
Treatment: electroplating silver.
Customizable
large current
And other materials

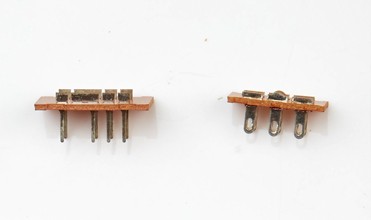

Insulating base
Material: wood;
Process: stamping forming.
Not customizable
circular bead
Material: stainless steel;
Treatment: electroplating nickel.
Not customizable
mechanical spring
Material: bronze;
Process: stamping forming.
Customizable
Oprating Force(20gf-800gf)
Material
Decorative oil
Material: red oil or green oil
A kind of oil chemical industry,
On the terminal
Contact with the floor area,
The adornment effect.
General requirements non-toxic,
Environmental protection.
Not customizable
Can not use.
