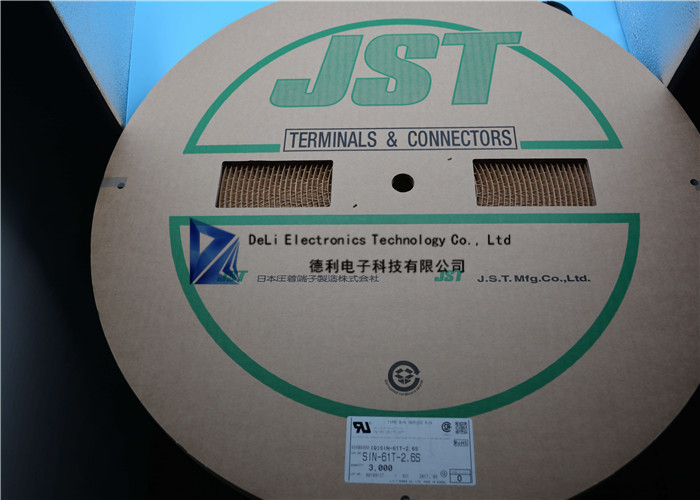

SIN 61T 2.6 S PCB Connector WTB Tin Terminal Wire To Board Connector 14 AWG

Product Categories

DELI ELECTRONICS TECHNOLOGY CO.,LTD

Contact Now

Add to Cart

SIN-61T-2.6S PCB Connector WTB Tin Terminal Connector 14 AWG

Product Attributes	Select All
Categories	Connectors, Interconnects
	Terminals - Wire to Board Connectors
Manufacturer	JST Sales America Inc.
Series	SIN
Packaging	Tape & Reel (TR)
Part Status	Active
Terminal Type	Through Board
Hole Diameter	0.098" (2.49mm)
Insulation Diameter	0.134" ~ 0.150" (3.40mm ~ 3.81mm)
Length - Overall	0.327" (8.31mm)
Wire Gauge	14 AWG
Contact Material	Brass
Contact Finish	Tin

Description:

Muti-Port RJ45 side entry Network Jack with shield

Number of ports: 1*1

Number of position: 8

Number of contacts: 2,4,6 or 8

Electrical:

Rated current: 1.5A

Rated voltage: 125VAC

Insulation resistance: 500MΩmin

Contact resistance: 30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:

Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug

Durability: 600 mating cycles minimum

Materials:

Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)

2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel

3. Shield: 0.20~0.25mm thickness brass with tin plated

4. Gold Plating: Fu",+3u",6u",15u",30u",50u"

SIN 61T 2.6 S PCB Connector WTB Tin Terminal Wire To Board Connector 14 AWG

Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales3@deli-ic.com
Skype:hkdeli881
TEL:86-755-82539981
