PCB Connectors 2.54mm Vertical (Through hole) pin header
| Electrical: |
| Rated current: 1.5A |
| Rated voltage: 125VAC |
| Insulation resistance: 500MΩmin |
| Contact resistance: 30MΩmax |
| Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min |
|
| Mechanical: |
| Insertion force: 2.2kgf max |
| Retention strength: 7.7kgf min between jack and plug |
| Durability: 600 mating cycles minimum |
|
| Materials: |
| Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and
PA46 (UL94V-0) |
| 2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel |
| 3. Shield: 0.20~0.25mm thickness brass with tin plated |
| 4. Gold Plating: Fu",+3u",6u",15u",30u",50u" |
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

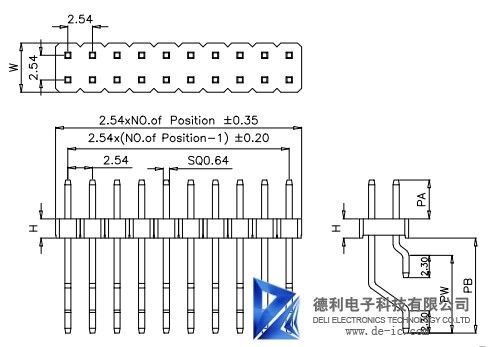

2. PCB Connectors 2.54mm Vertical (Through hole) Dual Row pin
header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
3. PCB Connectors 2.54mm Vertical Elevated pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
4. PCB Connectors 2.54mm Vertical Dual row Elevated pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
5. PCB Connectors 2.54mm Right-angle (Through hole) pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
6. PCB Connectors 2.54mm Right-angle (Through hole) Dual row pin
header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
7. PCB Connectors 2.54mm Elevated Right-angle pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
8. PCB Connectors 2.54mm Elevated Right-angle Dual row pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
9. PCB Connectors 2.54mm Elevated Right-angle Dual row pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
10. PCB Connectors 2.54mm SMT (Surface Mount) pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
11. PCB Connectors 2.54mm SMT (Surface Mount) Dual row pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
12. PCB Connectors 2.54mm Elevated SMT (Surface Mount) pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
13. PCB Connectors 2.54mm Elevated SMT (Surface Mount) Dual row pin
header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
14. PCB Connectors 2.54mm Single row Surface Mount pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
15. PCB Connectors 2.54mm Dual row Surface Mount pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
16. PCB Connectors 2.54mm Single row Through hole pin header
Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.50mm or customizable
Pin lengths: customizable
please check the drawing PH254.pdf
