A3977SEDT Power Stepper Motor Driver DMOS 5V 44 Pin PLCC Tube 3 MSL Level

Ask Lasest Price
Brand Name :	ALLEGRO
Model Number :	A3977SEDT
Price :	Negotiation
Payment Terms :	T/T, Western Union ， ESCROW
Supply Ability :	2000PCS
Delivery Time :	STOCK

Add to Cart

Product Details
Company Profile

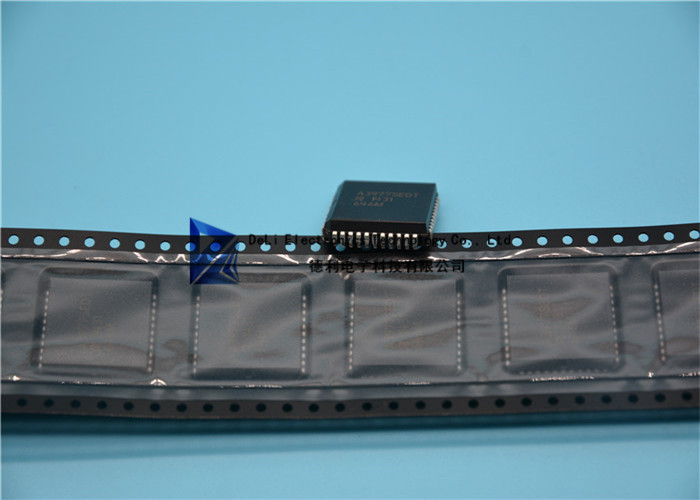

A3977SEDT Power Stepper Motor Driver DMOS 5V 44 Pin PLCC Tube 3 MSL Level

A3977SEDT Power Management IC DMOS Stepping Motor Driver 5V 44-Pin PLCC Tube

The A3977 is a complete microstepping motor driver, with builtin translator. It is designed to operate bipolar stepper motors in full, half, quarter, and eighth-step modes, with output drive capability of 35 V and ±2.5 A. The A3977 includes a fixed off time current regulator that has the ability to operate in slow, fast, or mixed decay modes. This current decay control scheme results in reduced audible motor noise, increased step accuracy, and reduced power dissipationThe translator is the key to the easy implementation of the A3977. Simply inputting one pulse on the STEP input drives the motor one step (two logic inputs determine if it is a full, half, quarter, or eighth step). There are no phase-sequence tables, high frequency control lines, or complex interfaces to program. The A3977 interface is an ideal fit for applications where a complex microprocessor is unavailable or over-burdened

Key Features

±2.5 A, 35 V output rating
Automatic current decay mode detection/selection
3 to 5.5 V logic supply voltage range
Mixed, fast, and slow current decay modes
Home output
Synchronous rectification for low power dissipation
Internal UVLO and thermal shutdown circuitry
Crossover-current protection

Find Similar Parts

	Description	Value
	Lead Finish	Matte Tin
	Max Processing Temp	245
	Maximum Operating Current	12 mA
	Mounting	Surface Mount
	MSL Level	3
	Operating Supply Voltage	5 V
	Operating Temperature	-20 to 85 °C
	Pin Count	44
	Product Dimensions	16.59 x 16.59 x 3.68 mm
	Supplier Package	PLCC
	Type	DMOS Stepping Motor Driver
