Water Sterilizer UVC LED Lamp Module DC 24V With Cable XH2.54 2P Terminal

Ask Lasest Price
Brand Name :	DELI
Model Number :	DLWS-UVC-24
Price :	netoation
Payment Terms :	T/T, Western Union, paypal
Supply Ability :	10000
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

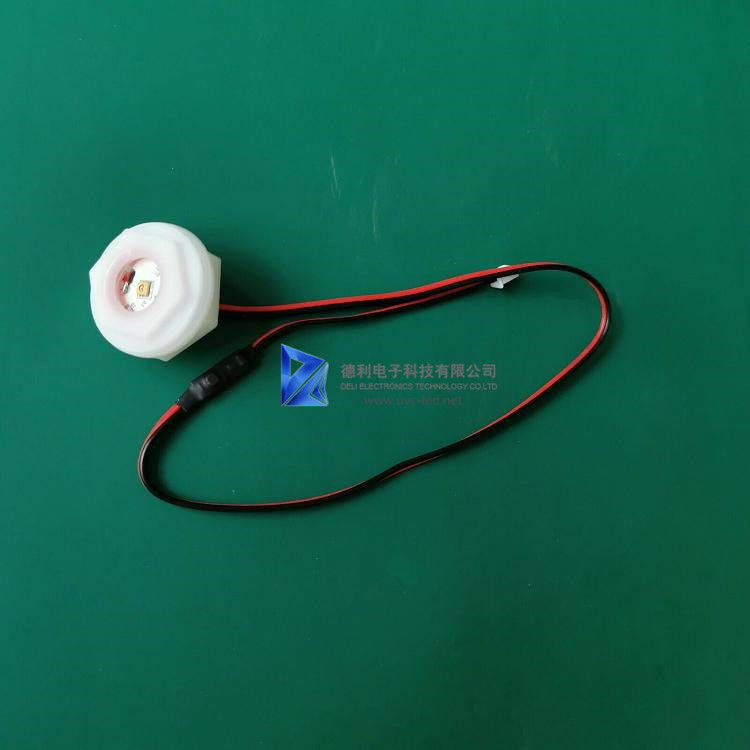

Water Sterilizer UVC LED Lamp Module DC 24V With Cable XH2.54 2P Terminal

DC24V Water Sterilizer UVC LED Lamp Module 2.0-3.0mW With Cable XH2.54 2P Terminal

Parameters:

Voltage: DC 24V
Current: 40±2mA
Environment temperature: ≤55℃
UVC LED Luminous Power; 2.0-3.0mW
Insulation and voltage resistance: AC 1500V, 50Hz / 1min
Lifespan: >10,000H
Dominant Wavelength: 270nm-285nm
Cut-out Hole:27.5mm

Optical and Electrical Characteristics @T_J=25℃

Item	symbol	condition	Min	Average	Max	Unit
Angle	2θ1/2	24DC	---	120	---	deg
Output	P	24DC	---	≥2	---	mW
Half-wave width	Δλ	24DC	8	11.5	12	nm
Peak Wavelength	λP	24DC	265	275	285	nm

Features:

1. High performance: Kill 99.99% of harmful bacteria with UV light in seconds.

2. DIY Water Sanitizer solution: Clean water by installing a UVC LED module.

3. Environmental friendly: Chemical-free ultroviolet lighting source.

4. Long serving life: Nearly 10000 hours of working life.

5. Third party tested: CE, RoHS certificates.

6. Instant start.

Test Method:

1. Turn on the UVC LED device.

2. Make a bacteria smear of 0.1ml colon bacillus liquid with the density of 3000cfu/ml.

3. Expose the smear under the UVC LED device for 5 minutes with a distance of 1 cm.

4. Get the test result and calculate the disinfection rate.

Notes:

1. SMD diodes should not be exposed in the air. It may affect its working life.

2. Use the LED diode in 1 month when it is unsealed.

3. SMD diode storage temperature:10-55℃; Humidity<65%RH;

It is suggested the SMD diodes should be used in one year.

4. The SMD diodes should be put into antistatic bags when it’s in stock

because LED diode is electrostatic sensitive.

5. Deep UVC light may hurt eyes or skin.

It is suggested to take countermeasures before exposing to UVC light.

UVC LED Testing

1.Turn on the UVC LED

2.Colon bacillus,The concentration of bacteria liquid is 3000cfu/mL,

Pick 0.1mL bacteria(about 300pc bacteria)to a board. Use this UVC led,

Shining 5min with distance 1cm,and then check.

3.Irradiated by a distance of 1 cm from the surface of the bacteria.

4.The shining time is 5 minutes.

5.Calculate the percentage of sterilization rate.
