    led terminal block DL128BB-XX-5.0/5.08 Pitch 5mm 5.08mm

    Ask Lasest Price
    Brand Name : DELI
    Model Number : DL128BB-XX-5.0/5.08
    Payment Terms : T/T, Western Union
    Supply Ability : 10000
    Delivery Time : 2DAYS
    • Product Details
    • Company Profile

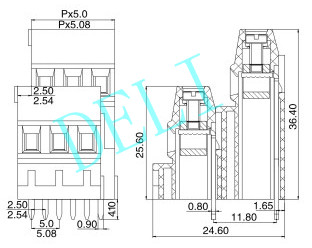

    led terminal block DL128BB-XX-5.0/5.08 Pitch 5mm 5.08mm

    MATERIAL
    Pitch:5.0/5.08MM
    Poles: 2P,3P
    Screw:M2.5, Steel, Zinc plated
    Wire cage: Steel, Zinc plated, BrasNi plated
    Pin header: Brass, Tin plated
    Housing:PA66. UL94V-0
    ELECTRICAL
    Rated voltage:300V
    Rated current:10A
    Withstanding voltage:AC2000V/1Min
    Wire range:24-12AWG
    MECHANICAL
    Temperature range:-40℃-- +105℃
    MAX soldering:+250℃ for 5 sec
    Torque:0.4Nm(3.5 lb.in)
    Strip length:6-7mm
    led terminal block DL128BB-XX-5.0/5.08 Pitch 5mm 5.08mm
    DeLi Electronics Technology Co., Ltd
    PART# : DL128BB-XX-5.0/5.08
