    DL128L PCB Mount Screw 3.5 3.81 Pitch Terminal Block Connector 10AMP MKDS 1/ 2-3.8 1727010 Phoenix

    Ask Lasest Price
    Brand Name : DELI
    Model Number : DL128L-XX-3.5/3.81
    Payment Terms : T/T, Western Union
    Supply Ability : 10000
    Delivery Time : 2DAYS
    • Product Details
    • Company Profile

    DL128L PCB Mount Screw 3.5 3.81 Pitch Terminal Block Connector 10AMP MKDS 1/ 2-3.8 1727010 Phoenix


    Can replace the following products


    MKDS 1/ 2-3.81727010Phoenix
    MKDS 1/ 3-3.81727023Phoenix
    MKDS 1/ 4-3.81727036Phoenix
    MKDS 1/ 5-3.81727049Phoenix
    MKDS 1/ 6-3.81727052Phoenix
    MKDS 1/ 7-3.81727065Phoenix
    MKDS 1/ 8-3.81727078Phoenix
    MKDS 1/ 9-3.81727081Phoenix
    MKDS 1/ 10-3.81727094Phoenix
    MKDS 1/ 11-3.81727104Phoenix
    MKDS 1/ 12-3.81727117Phoenix
    MKDS 1/ 13-3.81931754Phoenix
    MKDS 1/ 2-3.51751248Phoenix
    MKDS 1/ 3-3.51751251Phoenix
    MKDS 1/ 4-3.51751264Phoenix
    MKDS 1/ 5-3.51751277Phoenix
    MKDS 1/ 6-3.51751280Phoenix
    MKDS 1/ 7-3.51751293Phoenix
    MKDS 1/ 8-3.51751303Phoenix
    MKDS 1/ 9-3.51751316Phoenix
    MKDS 1/ 10-3.51751329Phoenix
    MKDS 1/ 11-3.51751332Phoenix
    MKDS 1/ 12-3.51751345Phoenix
    MKDS 1/ 13-3.51751358Phoenix
    MKDS 1/ 14-3.51751361Phoenix
    MKDS 1/ 15-3.51751374Phoenix
    MKDS 1/ 16-3.51751387Phoenix

    MATERIAL

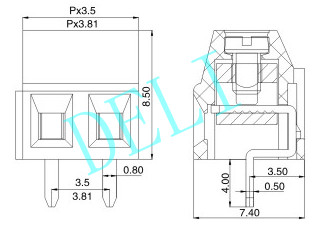

    Pitch:3.5/3.81MM
    Poles: 2P,3P
    Screw:M2, Steel, Zinc plated
    Wire cage:Brass, Ni plated
    Pin header:Brass, Tin plated
    Housing:PA66. UL94V-0
    ELECTRICAL
    Rated voltage:300V/130V
    Rated current:10A/10A
    Withstanding voltage:AC1250V/1Min
    Wire range:24-12AWG
    MECHANICAL
    Temperature range:-40℃-- +105℃
    MAX soldering:+250℃ for 5 sec
    Torque:0.2Nm(1.8 lb.in)
    Strip length:5-6mm
    DL128L PCB Mount Screw 3.5 3.81 Pitch Terminal Block Connector 10AMP MKDS 1/ 2-3.8 1727010 Phoenix
    DeLi Electronics Technology Co., Ltd
    PART# :DL128L-XX-3.5/3.81
    Quality DL128L PCB Mount Screw 3.5 3.81 Pitch Terminal Block Connector 10AMP MKDS 1/ 2-3.8 1727010 Phoenix for sale

    DL128L PCB Mount Screw 3.5 3.81 Pitch Terminal Block Connector 10AMP MKDS 1/ 2-3.8 1727010 Phoenix
