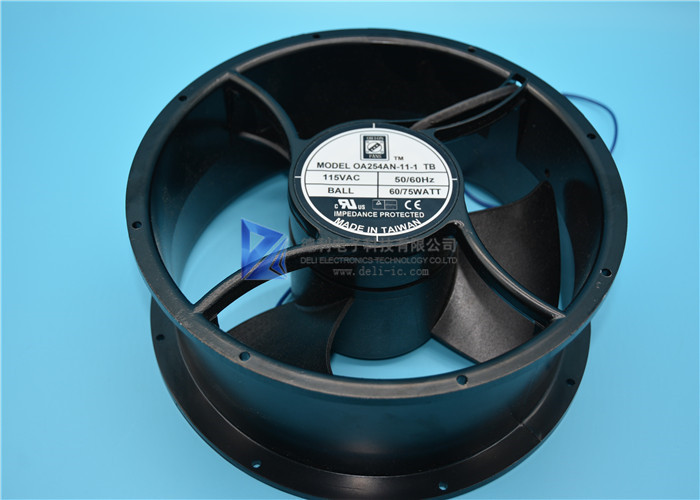

OA254AN-11-1TB Electronic Integrated Components FAN 254X89MM 115VAC
TERM Bearing Type Ball
Part Number: OA254AN-11-1TB
Description: 254X89MM 115VAC TERM
Series: OA254AN
Part Status: Active
Voltage - Rated: 115VAC
Size / Dimension: Round - 254mm Dia
Width: 89.00mm
Bearing Type: Ball
Fan Type: Tubeaxial
Noise: 65.0 dB
Power (Watts): 70.0W
RPM: 2200 RPM
Termination: Active
Operating Temperature: -4 ~ 176～F (-20 ~ 80～C)
Weight: standard
R2Dxxx, R2Exxx and R2Sxxx Series
AC Backward Curved Motorized Impellers
Most electronics systems create heat which needs to be removed.
Impellers are the cooling types with higher efficiencies and one of
the quietest performance of all types.
OAB908 Series
AC Side Inlet Blower, Ball Bearing, Dual Speed, 120V - 220V
Exceptional cooling performance, radiating blower with one
directional exhaust.
Low noise via highly efficient fan blade design.
Low power consumption and high motor efficiency through radial gap
type motor design.
AC and DC Axial Fans
Providing an overview of the main considerations when selecting a
fan and discuss each consideration individually.
There will be reviews of the types of bearings and the types of AC
and DC fan motors, i
ncluding a discussion of the different forms of motor protection.
The part number structure will be examined and examples of both AC
and DC fan products available from .
4715MS, 4715FS, 4715TS, 4715HS Series
AC Axial Fans, 100V - 230V
AC axial fans can be an integral part of a cooling solution for
your heat generating applications.
AC axial fans are common types of fans used in electronic
components.
The axial flow fan uses a propeller to create a large airflow in
the direction of the axis, moving air in a parallel direction of
the blade axis. In other words, the fan blows air across the axis
of the blade, hence the name axial fans.
The fan moves heated air away from the components and draw cooler
air over them,
thereby giving a superior life expectancy to the components.
