8-1437565-1 # TE Low Profile Series FSMCT Tactile Switches Surface
Mount
Material Specifications:
Cover: Nickel Silver
Stem/actuator: Brass-”j” Lead , Brass Nickel Plate-gullwing
Contacts:
Moving: Stainless Steel, Silver Clad-plate
Fixed/terminal: Copper Alloy, silver-plate
Case: nylon, Ul94v-0description
Typical Performance Characteristics:
Contact Rating ........................20ma @ 15vdc
Initial Contact Resistance ........100milliohms Max
Insulation Resistance ..............100megaohms @ 100vdc Min.
Dielectric Strength ..................500 Vac For 1 Minute
Actuation Travel ......................0.25 +0.1/-0.2
Life Expectancy ......................up To 500,000 And 1,000,000
Cycles
Environmental Specifications:
Operating Temperature ................-4 To +185°f (-20 To +85°c)
Storage Temperature ....................-22 To +185°f (-30 To
+85°c)
Resistance To Solder Heat ..............per Eia-364-56a, Procedure
4 & 5, Level 3
Solderability ................................per Eia-364-52, Class
2, Category 1, Temp. 473°f (245°c) Max.
Time 2.5Seconds Max., 95% Minimum Coverage.
Parameters :
Part Number: 8-1437565-1
Description: SWITCH "SPST-No" 0.02A 15V
Packaging: Shear tape (CT)
Series: FSMCT
Circuit: " SPST - NO "
Switch function: off - instantaneous
Rated current of contact at different voltages: 0.02A @ 15V DC
Actuator type: Standard
Type of installation: surface mount
Actuator PCB height, vertical: 1.50mm
Actuator length, right Angle: No
Actuator direction: Top actuation
Terminal type: Gull wing

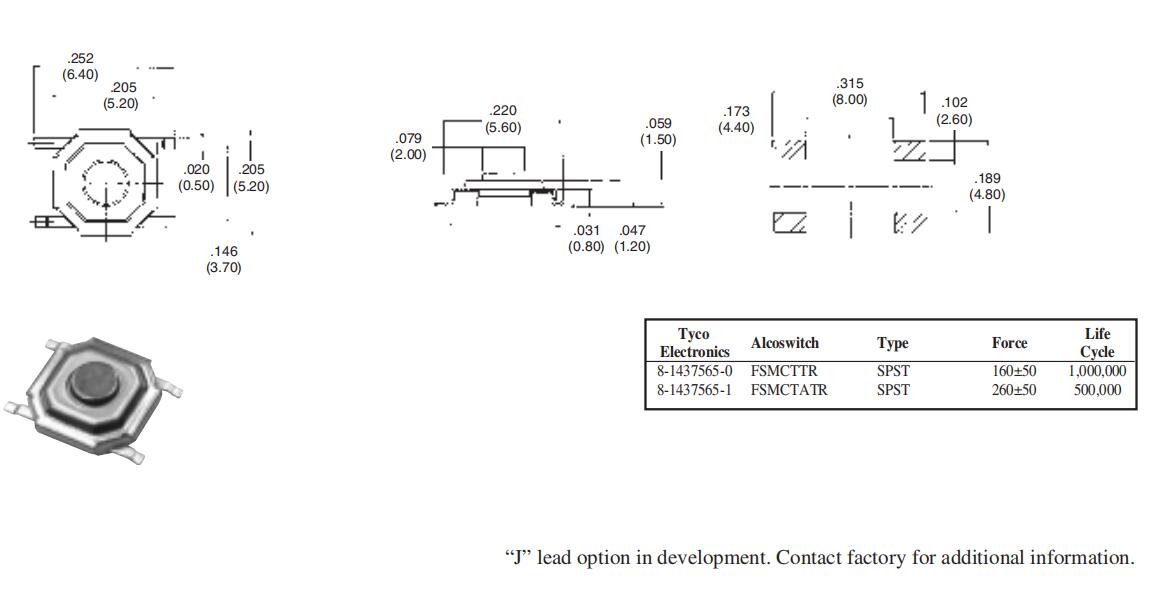

Shape: 5.00mm x 5.00mm
Lighting: No lighting
Lighting type, color: No
Lighting voltage (nominal) : No
Force: 260GF
Intrusion protection: No
