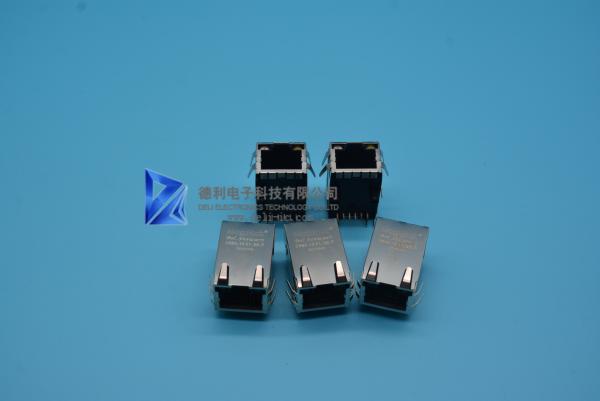

08B0-1XX1-36-F Magjack BEL Stewart Solutions RJ45 Modular Connectors Ethernet Connectors 2010 WM

10/100BaseT, 1X1, OG/Y LEDs, Tap Up, -40 to 85*C, RoHS

El Ectrical Characteristics @ 25°c

Turns Ratio

Tx 1ct:1

Rx 1ct:1

Ocl @ 100khz/100mvrms
8ma Dc Bias : 350uh Min.

Ins. Loss
1mhz To 100mhz -1.0 Db Max Ret. Loss (min)

1mhz -30mhz -18 Db
30mhz - 60mhz -18+ 20log(f /30mhz) Db
60mhz - 80mhz -12 Db

Cross Talk (tx - Rx)
500khz - 100 Mhz -35 Db Min .

Cm To Cm Rej
100khz一100 Mhz -30 Db Min

Cm To Dm Rej
100khz - 100 Mhz -40 Db Min

Hipot (isolation Voltage): 1500 Vrms
100% Of Production Tested To Comply With Ieee 802.3 Isol Ation Requirements.

Led 1
Vf (forward Vol Tage)
If =20ma Yellow 2.1v Typ,
Ad (dominant Wavel Ength>

If=20ma Yellow 590nm Typ.

Led 2
Vf (forward Vol Tage)
If =20ma

Orange 2.0v Typ.
Green 2.2v Typ.
Ad (dominant Wavel .ength)

If =20ma

Drange 610nm Typ.

GreeN 565nm Typ.

Plastic Housing: Thermopl Astic PbtFl Ammability Rating Ul 94v-0

Contacts Pl Ating: 15 Micro-inch Hard Gol D Pl Ating

Pins: Tin-coated Copper Wire, Dia 0.018 Inch.

Me Tal Shiel D: Nickel Plated On Copper All Oy, (all Ground L Eads Are Sol Der Dippe D)

Mark Part With Mfg Logo, Mfg Name, Part Number, And Date Code.

Ul Recdgnized - File #e196366 And E169987.

2. Rohs Compl Iance, Per Eu Directive 2002/95/ec.

Diagram As Below , Contact With Me For Datasheet
