    Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock

    Ask Lasest Price
    Brand Name : MOLEX
    Model Number : 39288040
    Certification : CE/ RoHS
    Price : To be negotiated
    Payment Terms : T/T, Western Union ,paypal
    Supply Ability : 10,000PCS
    Delivery Time : in stock 2-3days
    • Product Details
    • Company Profile

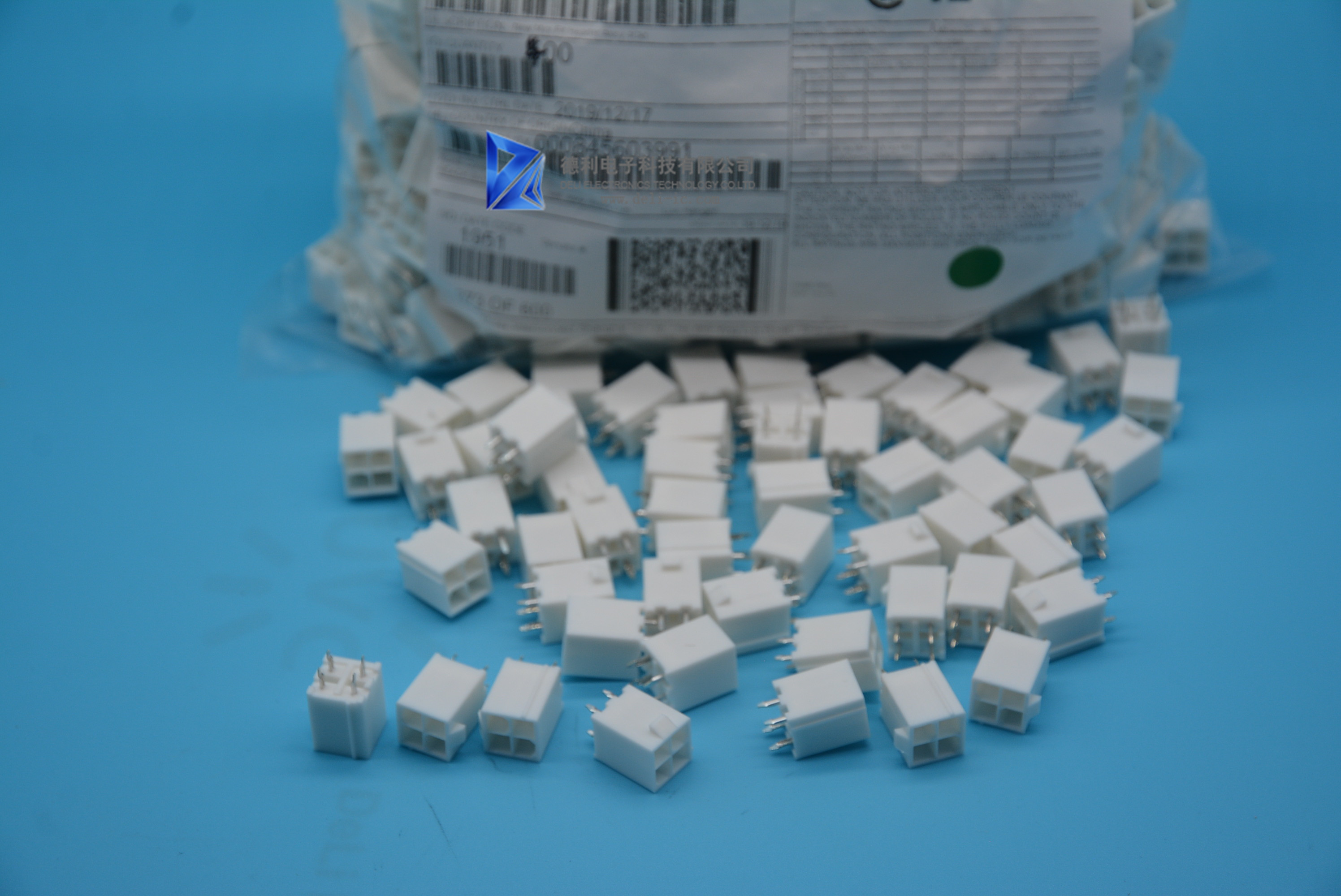

    Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock

    Mini-Fit Jr. 5566 Vertical Header 4.20mm Pitch Dual Row 4 Circuits without Snap-in Plastic Peg PCB Lock Tin Natural

    part number


    39288040 Molex

    Description


    CONN HEADER VERT 4POS 4.2MM

    packing


    in bag /box

    series


    Mini-Fit Jr 5566

    material


    new and orginal

    Connector type


    joint

    Contact type


    The male form of a pin

    Spacing - mating


    0.165"(4.20mm)
    • Pin

    4

    row

    2


    Line spacing - mating


    0.165"(4.20mm)

    Number of pins loaded


    all

    type


    Plate to cable/conductor
    • protective guard

    With masking - 4 walls


    • Installation Type

    through-hole


    terminating


    soldering

    Fastening type


    Locking pin chute

    Contact length - mating


    -

    Contact length - terminal


    0.138"(3.50mm)

    Total contact length


    -

    Insulation height


    0.504"(12.80mm)

    Contact shape


    square

    Contact surface treatment - mating


    tin

    Contact surface treatment thickness - mating


    35.4µin (0.90µm)

    Contact surface treatment - column


    tin

    Contact material


      brass

      insulating material


      Polyamide (PA66), nylon 66
      • FEATURES

      -


      • Operation Temperature

      -


      Intrusion protection

      -


      Flammability grade of materials

      UL94 V-0


      Insulation color

      natural


      rated current

      -


      • Rated Voltage

      -


      Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock

      Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock
