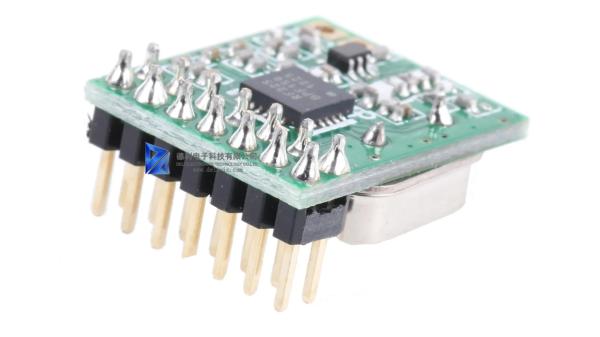

RFM22-868-D ISM Wireless Transceiver module 433MHz 470MHz HP RF Module

Applications

„ Remote control

„ Home security & alarm

„ Telemetry

„ Personal data logging

„ Toy control

„ Tire pressure monitoring

„ Wireless PC peripherals

„ Remote meter reading

„ Remote keyless entry

„ Home automation

„ Industrial control

„ Sensor networks

„ Health monitors

„ Tag readers

Features :

„ Frequency Range z 433/470/868/915MHz ISM bands

„ Sensitivity = –121 dBm

„ Output power range z +20 dBm Max (RFM22B) z +13 dBm Max (RFM23B)

„ Low Power Consumption z 18.5 mA receive z 30 mA @ +13 dBm transmit z 85 mA @ +20 dBm transmit

„ Data Rate = 0.123 to 256 kbps

„ FSK, GFSK, and OOK modulation

„ Power Supply = 1.8 to 3.6 V

„ Ultra low power shutdown mode

„ Digital RSSI

„ Wake-up timer

„ Auto-frequency calibration (AFC)

„ Power-on-reset (POR)

„ Antenna diversity and TR switch control

„ Configurable packet handler

„ Preamble detector

„ TX and RX 64 byte FIFOs

„ Low battery detector

„ Temperature sensor and 8-bit ADC

„ –40 to +85 °C temperature range

„ Integrated voltage regulators

„ Frequency hopping capability

„ On-chip crystal tuning

„ 14-PIN DIP & 16-PIN SMD package

„ Low cost

More details :

Hope Microelectronics

Communication module type: RF

Module type: FM transceiver

Modulation type : FSK

Frequency : 433 MHZ/ 470MHZ

Interface : SPI

Receiver sensitivity : 121dBm

Supply voltage: 1.8... 3.6 V DC

Transmitter output power: DBM-20dbm

Install : THT

Transfer rate : 256kbps
