PC817XJ000F 4 Pin Dip 5.0kV 5mA General Purpose Photocoupler

Product Categories

DELI ELECTRONICS TECHNOLOGY CO.,LTD

Contact Now

Name: PC817XJ000F 4 Pin Dip 50kV 5mA General Purpose Photocoupler
Brand: SHARP
Price: 1 USD

Add to Cart

PC817XJ000F General Purpose Photocoupler Sharp Japan DIP 4

Applications

1. I/O isolation for MCUs (Micro Controller Units)

2. Noise suppression in switching circuits

3. Signal transmission between circuits of different potentials and impedances

Features

1. 4pin DIP package

2. Double transfer mold package (Ideal for Flow Soldering)

3. High collector-emitter voltage (VCEO:80V)

4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)

5. Several CTR ranks available

6. High isolation voltage between input and output (Viso(rms) : 5.0 kV)

7. Lead-free and RoHS directive compliant

Agency approvals/Compliance

1. Recognized by UL1577 (Double protection isolation), file No. E64380 (as model No. PC817)

2. Package resin : UL flammability grade (94V-0)

Description

PC817XJ0000F Series contains an IRED optically coupled to a phototransistor.

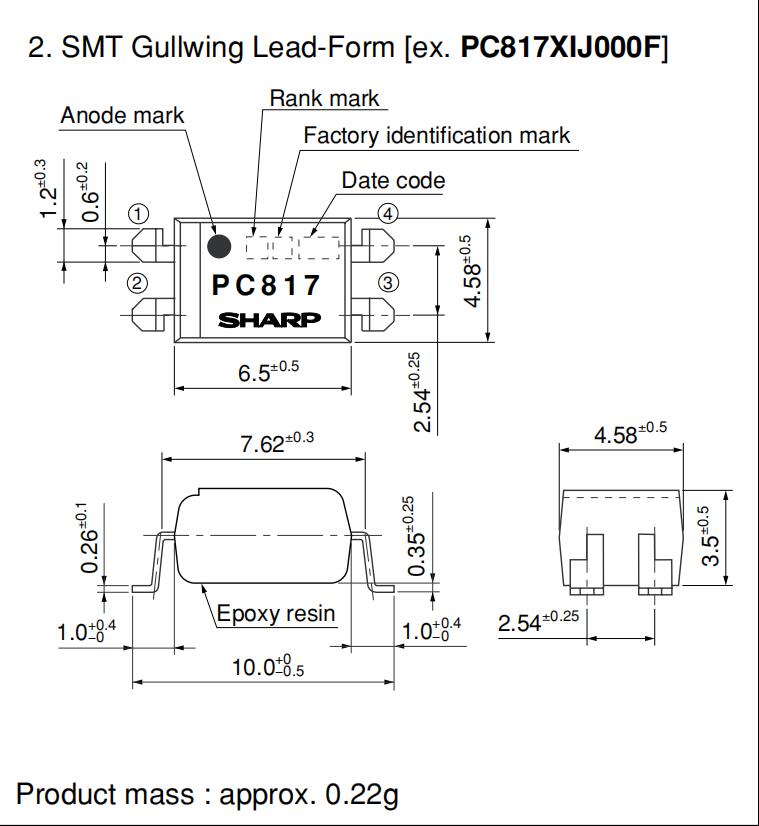

It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option.

Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.
