Brand Name : | Kingbright |
Model Number : | APHBM2012SURKCGKC |
Certification : | CE/ RoHS |
Price : | negotiation |
Payment Terms : | T/T, Western Union,paypal |
Supply Ability : | 10,000PCS |
Delivery Time : | in stock 2-3days |

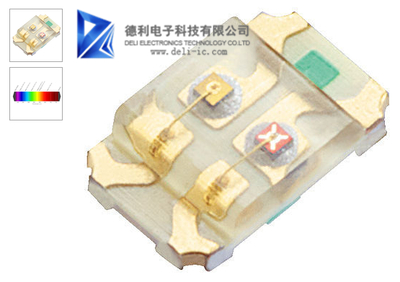

APHBM2012SURKCGKC # Kingbright 0805 SMD led lamp highlighting ultra thin green and red Lens clear new original
Contact with me for more details.
Lens Size | 1.30mm x 1.25mm |
Lens Color | Colorless |
Packaging | Digi-Reel® |
Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
Height (Max) | 0.45mm |
Package / Case | 0805 (2012 Metric) |
Millicandela Rating | 50mcd Green, 80mcd Red |
Mounting Type | Surface Mount |
Lens Style | Rectangle with Flat Top |
Part Status | Active |
Color | Green, Red |
Features | - |

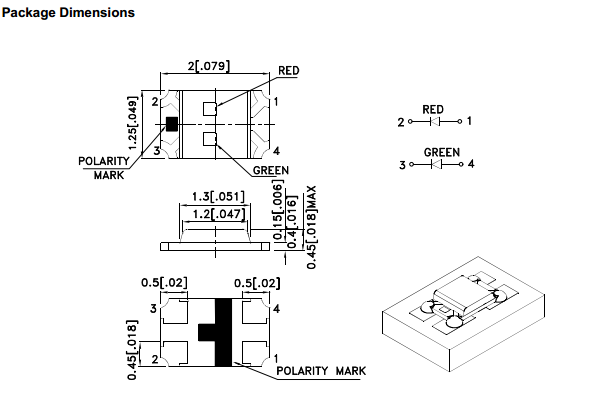

Size / Dimension | 2.00mm L x 1.25mm W |
Series | - |
Configuration | Independent |
Wavelength - Dominant | 570nm Green, 630nm Red |
Lens Transparency | Clear |
Supplier Device Package | 2012(0805) |
Manufacturer | Kingbright |
Current - Test | 20mA Green, 20mA Red |
Viewing Angle | 120° |
Wavelength - Peak | 574nm Green, 645nm Red |
