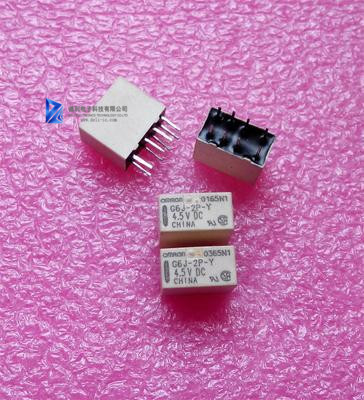

G6J-2P-Y Surface-mounting Relay Ultra - compact and Slim DPDT contact Relay

PCB Terminal through-hole Non-latching Type

1. Relay Function

None: Non-latching, standard

U: Single-winding latching

2. Contact Form

2: DPDT

3. Terminal Shape

P: PCB through-hole terminals

FL: SMT Gull-wing

FS: SMT shortened leads

4. Packaging

None: Tube packaging

TR: Tape and reel packaging

9. Rated Coil Voltage : 3, 4.5, 5, 12, 24V DC

Specifications:

Rated load: 0.3 A @ 125 VAC , 1 A @ 30 VDC

Contact material: Ag (Au Clad)

Max. carry current: 1 A

Max. operating voltage: 125 VAC, 110 VDC

Max. operating current: 1 A

Max. switching capacity: 37.5 VA, 30 W

Min. permissible load (see note): 10m VDC, 10μA

Note: This value was measured at a switching frequency of 120 operations/min

and the criterion of contact resistance is 5% of the load impedance.

This value may vary depending on the operating frequency, operating conditions, expected reliability level of the relay, etc.

Always double check relay suitability under actual load conditions.
