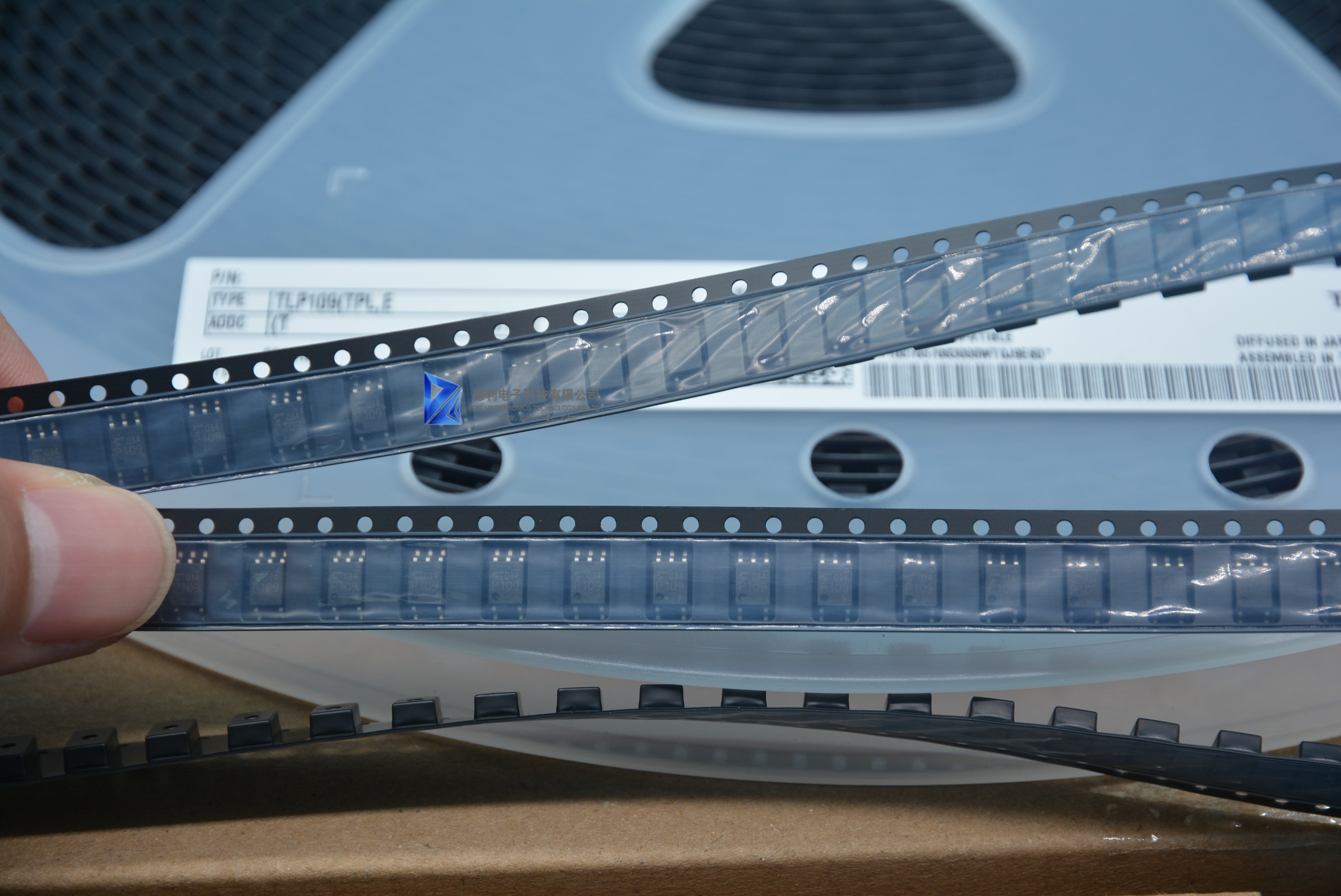

TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5

Ask Lasest Price
Brand Name :	TOSHIBA
Model Number :	TLP109
Certification :	CE/ RoHS
Price :	To be negotiated
Payment Terms :	T/T, Western Union,paypal
Supply Ability :	10,000PCS
Delivery Time :	in stock 2-3days

Add to Cart

Product Details
Company Profile

TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5

TOSHIBA surface - mount Photocoupler GaA As Ired & Photo−IC

Features:

Channel : 1
Voltage - Isolation 3750Vrms
Current transfer ratio (minimum) 20% @ 16mA
Current transfer ratio (maximum) -On/off time (typical value) 800ns, 800ns (maximum)
Rise/fall time (typical value) -Input type DC
Output type transistor
Voltage - output (Max) 20V
Current - output/channel 8mA
Voltage - forward (Vf) (typical value) 1.64V
Current - DC forward (If) (maximum) 20mA
Vce saturation pressure drop (maximum) -
Operating temperature -55°C ~ 125°C
Mounting type Surface mount type
Package/housing 6-SOIC (0.179", 4.55mm wide), 5 leads

Supplier device package 6-SO, 5 lead

Uses:

Digital Logic Isolation

Line Receivers

Power Supply Feedback Control

Switching Power Supplies

Transistor Inverters

Details:

The Toshiba TLP109 mini-flat coupler is a small-outline coupler suitable for surface-mount assembly.

The TLP109 consists of a high-output-power GaAℓAs light emitting diode

optically coupled to a high-speed photodiode-transistor chip.

The TLP109 is housed in the 6-pin SO package and guarantees a creepage distance of ≥ 5.0 mm,

a clearance of ≥ 5.0 mm and an insulation

thickness of ≥ 0.4 mm. Therefore, the TLP109 meets the reinforced

insulation class requirements of international safety standards.

• Isolation voltage: 3750 Vrms (min)

• Switching speed: tpHL = 0.8 μs, tpLH = 0.8 μs (max)

(@RL = 1.9 kΩ)

• TTL-compatible

• UL recognized :UL1577, File No.E67349

• c-UL recognized :CSA Component Acceptance Service No. 5A, File No.E67349

• VDE under application : DIN EN60747-5-2

Construction Mechanical Ratings

Creepage distance: 5.0 mm (min)

Clearance: 5.0 mm (min)

Insulation thickness: 0.4 mm (min)
