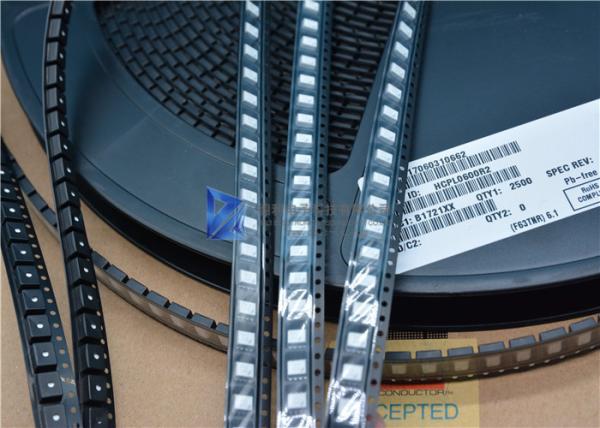

HCPL0600R2 High Speed 10MBit/S Logic Gate Optocouplers SOP8 White

Product Categories

DELI ELECTRONICS TECHNOLOGY CO.,LTD

Contact Now

Add to Cart

HCPL0600R2 High Speed-10 MBit / s Logic Gate Optocouplers SOP8 White

Features

■ Compact SO8 package

■ Very high speed-10 MBit/s

■ Superior CMR

■ Logic gate output

■ Strobable output (single channel devices)

■ Wired OR-open collector

■ U.L. recognized (File # E90700)

■ VDE approval pending

Applications

■ Ground loop elimination

■ LSTTL to TTL, LSTTL or 5-volt CMOS

■ Line receiver, data transmission

■ Data multiplexing

■ Switching power supplies

■ Pulse transformer replacement

■ Computer-peripheral interface

Description

The HCPL06XX optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated

photo-detector logic gate with a strobable output (single channel devices).

The devices are housed in a compact small-outline package.

This output features an open collector, thereby permitting wired OR outputs.

The HCPL0600, HCPL0601 and HCPL0611 output consists of bipolar transistors on a bipolar process

while the HCPL0637, HCPL0638, and HCPL0639 output consists of bipolar transistors on a CMOS

process for reduced power consumption. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C.

An internal noise shield provides superior common mode rejection.

Applications
Energy Generation & Distribution
Industrial Motor
Uninterruptible Power Supply

HCPL0600R2 High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
