    230V 17A 60MHz 200W Silicon NPN Epitaxial Planar Transistor

    Ask Lasest Price
    Brand Name : Sanken
    Model Number : 2SC3264
    Certification : CE/ RoHS
    Price : To be negotiated
    Payment Terms : T/T, Western Union ,paypal
    Supply Ability : 10,000PCS
    Delivery Time : in stock 2-3days
    • Product Details
    • Company Profile

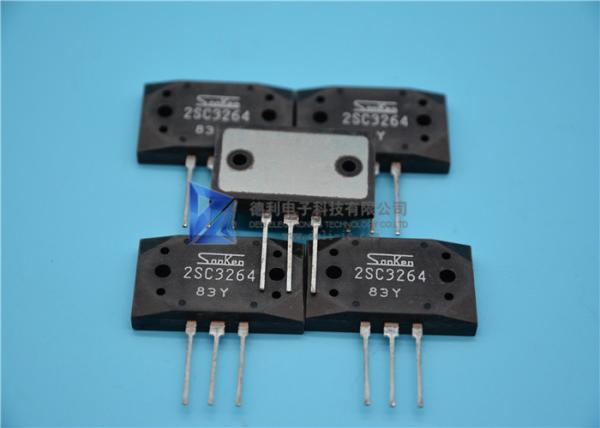

    230V 17A 60MHz 200W Silicon NPN Epitaxial Planar Transistor

    Silicon NPN Epitaxial Planar Transistor (Complement to type 2SA1295)
    MT200 TRANS NPN 230V 17A 60MHz 200W Sanken Japan Original
    Application : Audio and General Purpose
    Features:
    DETAIL
    descrtiption
    others
    Type
    Separate semiconductor products
    Transistors - Bipolar Transistors (BJTs) - Single
    maker
    Sanken
    Series
    -
    Packing
    State of parts
    new original
    Type
    NPN
    VCE saturation voltage drop (maximum) with different IB and IC
    2V @ 500mA,5A
    Current collector cutoff (maximum)
    100µA(ICBO)
    DC Current Gain (HFE) at Different IC and VCE (Minimum)
    50 @ 5A,4V
    Frequency - transition
    60MHz
    operating temperature
    150°C(TJ)
    • Installation Type
    Through Hold
    Outer package
    3-ESIP
    Vendor Device Package
    MT-200
    Current - Collector (Ic) (maximum)
    17A
    Voltage - collector breakdown (maximum)
    230V
    Power - maximum
    200W

    230V 17A 60MHz 200W Silicon NPN Epitaxial Planar Transistor
